Body
Seller reports crane is in good condition with all functions operational and is equipped with:
- Mercedes-Benz OM 904 LA diesel, four-cylinders, water cooled, turbocharged with 129 kW (173 bhp) at 2200 rpm.

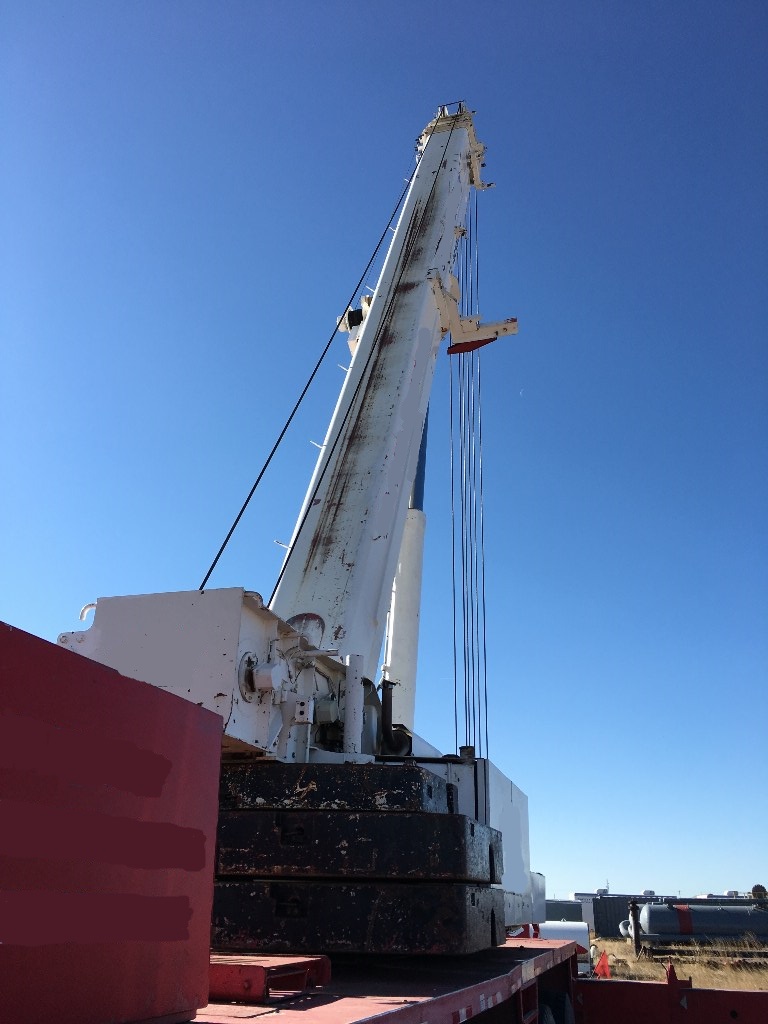

- 42'-166' five-section, full power MEGAFORM boom with patented TWIN-LOCK boom pinning system
- 33'-53' bi-fold swingaway lattice extension offsettable at 0°, 20° and 40°
- Dual axis armchair controls
- Two winches with 3/4 wire rope
- Auxiliary lifting sheave
- EKS 83 Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two- block condition.
- Counterweights consisting of three pieces totalling 8.4 metric tons (1- 3.4 metric ton, 2 - 2 metric ton sections) with hydraulic installation/removal system
- Windshield wiper on roof of operator's cab
- Johnson Hook Block - 88 ton capacity - 6 sheaves
- 12 1/2 ton capacity ball
- 10' Wide Grove Carrier with two man cab VIN#NWG12012
- Mercedes-Benz OM 502 LA eight cylinder, water cooled, turbo-charged Diesel Engine, with 390 kW (523 bhp) at 1800 rpm on Carrier
- Automatic Transmission (rebuilt in 2014)
- After market A/C in driver's cab
- Driver's seat in carrier needs reupholstering
- 20.5R25 tires
- MegaTrak Suspension
- Four hydraulic two-stage outrigger beams with vertical cylinders and outrigger pads with crane level indicators at each control station
- Hydraulic leak in rear right outrigger
- Painted red and white (some fading)
- Two-axle boom dolly
- OSHA certification TBD
